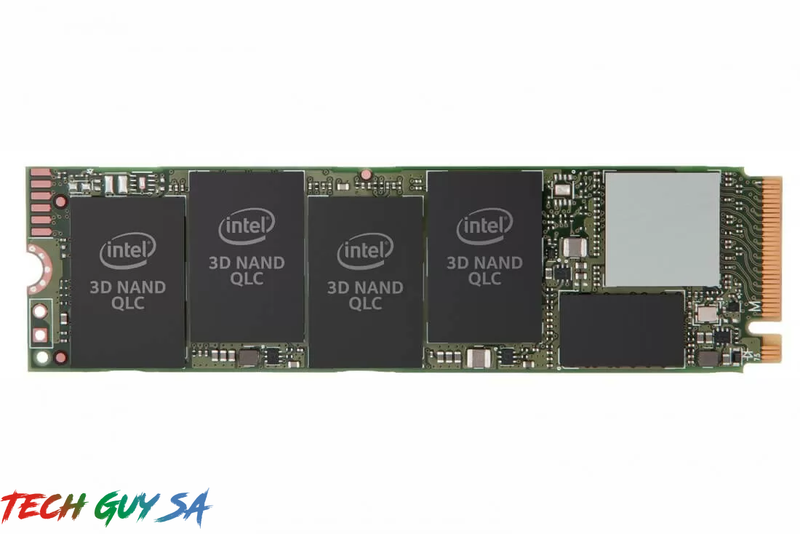

Intel® SSD 660p Series (512GB, M.2 80mm PCIe* 3.0 x4, 3D2, QLC) – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
Intel 512Gb 660P series nGff ( M.2 ) 3D2 QLC SSD with NVMe PCIe (Gen3.0) x4 mode , type 2280 -22x80x2.38mm (single sided) , with SLC caching , LDPC (Low Density Parity Check) ECC , SRT+RST+256bit AES encryption, no RSE , 16nm , SMi SM2258 controller , burst performance read/write : 1500/1000 mb/sec ; random ioPS 4K read/write : 90000/220000 , 1.6millions MTBF with 100 TBW – 5 years warranty
Technical Specifications
Essentials
Capacity
512 GB
Product Collection
Intel® SSD 660p Series
Status
Launched
Launch Date
03’18
Lithography Type
3D2 QLC
Use Conditions
PC/Client/Tablet
Performance
Sequential Bandwidth – 100% Read (up to)
1500 MB/s
Sequential Bandwidth – 100% Write (up to)
1000 MB/s
Random Read (8GB Span) (up to)
90000 IOPS
Random Write (8GB Span) (up to)
220000 IOPS
Power – Active
0.1 W
Power – Idle
0.040W
Reliability
Operating Temperature (Maximum)
70 °C
Operating Temperature (Minimum)
0 °C
Vibration – Operating
2.17 GRMS
Vibration – Non-Operating
3.13 GRMS
Shock (Operating and Non-Operating)
1000 G
Operating Temperature Range
0°C to 70°C
Endurance Rating (Lifetime Writes)
100 TBW
Mean Time Between Failures (MTBF)
>= 1.6 million hours
Uncorrectable Bit Error Rate (UBER)
<1 sector per 10^15 bits read
Warranty Period
5 yrs
Package Specifications
Weight
<10 grams
Form Factor
M.2 22 x 80mm
Interface
PCIe 3.0 x4, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection
No
Hardware Encryption
AES 256 bit
High Endurance Technology (HET)
No
Temperature Monitoring and Logging
No
End-to-End Data Protection
Yes
Intel® Smart Response Technology
Yes
Intel® Remote Secure Erase
No
Intel® Rapid Start Technology
Yes
| Weight | 1 kg |
|---|---|
| Dimensions | 16 × 12.1 × 2.2 cm |
| Brand |
Intel |
| Storage Size |
512GB |
| Form Factor |
M.2 2280 |
| Interface |
PCIe Gen3 X4 |
| Drive Type |
Consumer |
