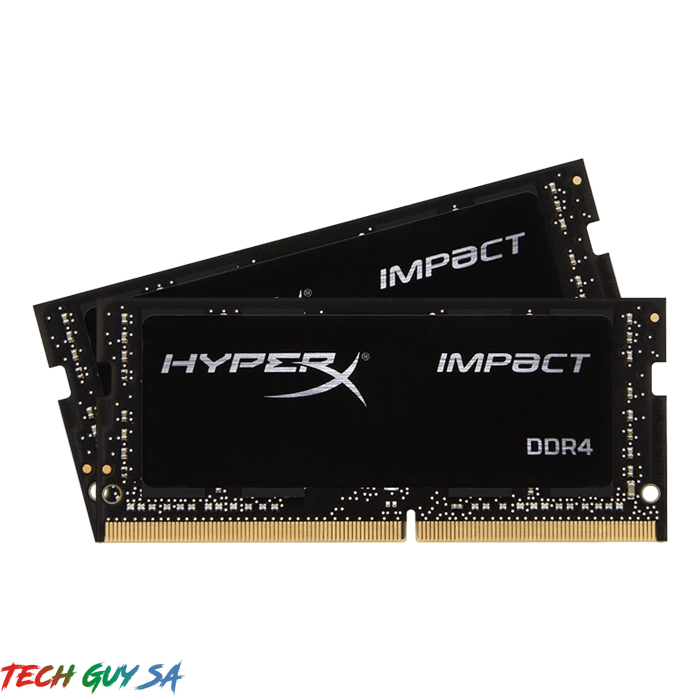

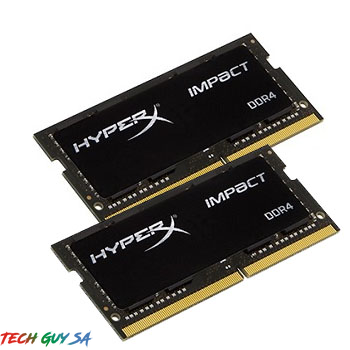

| Kingston HX426S15iB2K2/32 Ddr4 Nb so-dimm hyperX Impact black , 2666 (pc4-21330) , 16Gb x2 kit , single rank x8 , CL15 – 260pin , 1.2V – lifetime warranty – Retail pack | ||||||||
Part Number: HX426S15IB2K2/32
DDR4 2666MHz CL15 1.2V Unbuffered 2R 260-pin 8Gbit
SPECIFICATIONS
CL(IDD) 15 cycles
Row Cycle Time (tRCmin) 45ns (min.)
Refresh to Active/Refresh 350ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 26.25ns (min.)
Maximum Operating Power TBD W*
UL Rating 94 V – 0
Operating Temperature 0°C to 85°C
Storage Temperature -55°C to +100°C
*Power will vary depending on the SDRAM used.
HX426S15IB2K2/32
32GB (16GB 2G x 64-Bit x 2 pcs.)
DDR4-2666 CL15 260-Pin SODIMM Kit
PnP JEDEC TIMING PARAMETERS:
Note: The PnP feature offers a range of speed and timing options to support
the widest variety of processors and chipsets. Your maximum speed will
be determined by your BIOS.
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP – 2.5V Typical
• VDDSPD = 2.25V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.18” (30.00mm)
