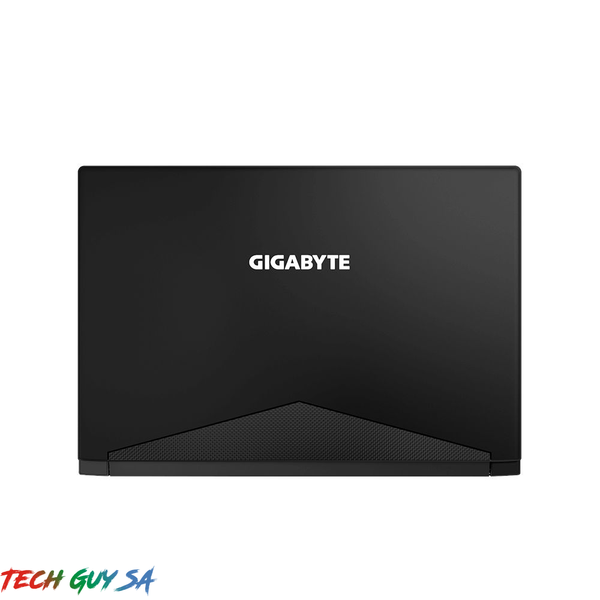

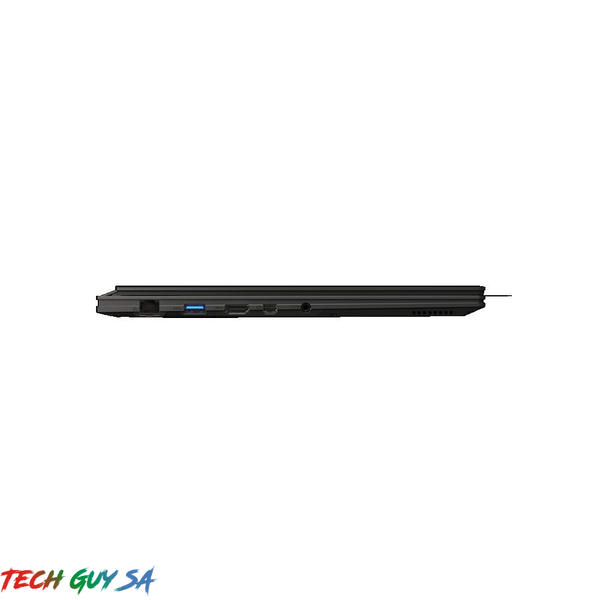

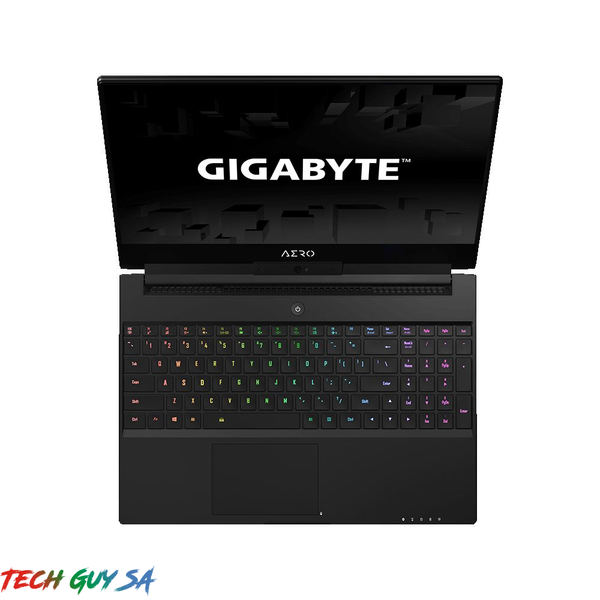

Gigabyte AERO 15X V8-CF2. Product type: Notebook, Form factor: Clamshell. Processor family: 8th gen Intel® Core™ i7, Processor model: i7-8750H, Processor frequency: 2.20 GHz. Display diagonal: 39.6 cm (15.6″), Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics adapter, Discrete graphics adapter. Operating system installed: Windows 10 Home. Product colour: Black
Processor
| Processor cores | 6 |
|---|---|
| Processor threads | 12 |
| Processor operating modes | 64-bit |
| Processor family | Intel Core i7-8xxx |
| Processor lithography | 14 |
| Processor cache | 9 |
| Processor cache type | Smart Cache |
| System bus rate | 8 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| Tjunction | 100 |
| ECC supported by processor | N |
| Thermal Design Power (TDP) | 45 |
| Processor frequency | 2.20 |
| Processor codename | Coffee Lake |
| Stepping | U0 |
| Bus type | DMI |
| Processor manufacturer | Intel |
| Processor socket | BGA 1440 |
| PCI Express configurations | 1×16,1×8+2×4,2×8 |
| Processor model | i7-8750H |
| Processor boost frequency | 4.10 |
| Motherboard chipset | Intel HM370 |
Other features
| 3D | N |
|---|---|
| AC adapter included | Y |
| On/off button | Y |
Memory
| Internal memory | 16 |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Graphics
| On-board graphics adapter | Y |
|---|---|
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter memory | 8 |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter base frequency | 350 |
| Maximum on-board graphics adapter memory | 64 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter OpenGL version | 4.5 |
| Number of discrete graphics adapters installed | 1 |
| On-board graphics adapter dynamic frequency (max) | 1100 |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1070 |
| On-board graphics adapter ID | 0x3E9B |
| CUDA | Y |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Charging port type | DC-in jack |
| Mini DisplayPorts quantity | 1 |
Display
| Display diagonal | 15.6 |
|---|---|
| Display resolution | 1920 x 1080 |
| Touchscreen | N |
| Dual-screen | N |
| Panel type | IPS |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| LED backlight | Y |
| Display surface | Matt |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Y |
| Speaker power | 4 |
Keyboard
| Numeric keypad | Y |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Y |
| Keyboard backlit | Y |
Network
| Wi-Fi | Y |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| Bluetooth Low Energy (BLE) | Y |
Storage
| Total storage capacity | 512 |
|---|---|
| Storage media | SSD |
| Card reader integrated | Y |
| Compatible memory cards | SD |
| Optical drive type | N |
| SSD capacity | 512 |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Camera
| Front camera | Y |
|---|---|
| Front camera signal format | 720p |
| Front camera HD type | HD |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery capacity (Watt-hours) | 94.24 |
Design
| Product colour | Black |
|---|---|
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
Weight & dimensions
| Weight | 2000 |
|---|---|
| Height | 18.9 |
| Depth | 250 |
| Width | 356.4 |
Power
| AC adapter power | 180 |
|---|
Security
| Cable lock slot | Y |
|---|---|
| Cable lock slot type | Kensington |
Processor special features
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | N |
| Intel Enhanced Halt State | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Quick Sync Video Technology | Y |
| Intel® InTru™ 3D Technology | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
| Intel® Secure Key | Y |
| Intel TSX-NI | N |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel® OS Guard | Y |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Y |
| Intel Clear Video Technology | Y |
| Intel Software Guard Extensions (Intel SGX) | Y |
| Embedded options available | N |
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| CPU configuration (max) | 1 |
| Intel® My WiFi Technology (Intel® MWT) | Y |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor package size | 42 x 28 |
| Processor code | SR3YY |
| Processor ARK ID | 134906 |
