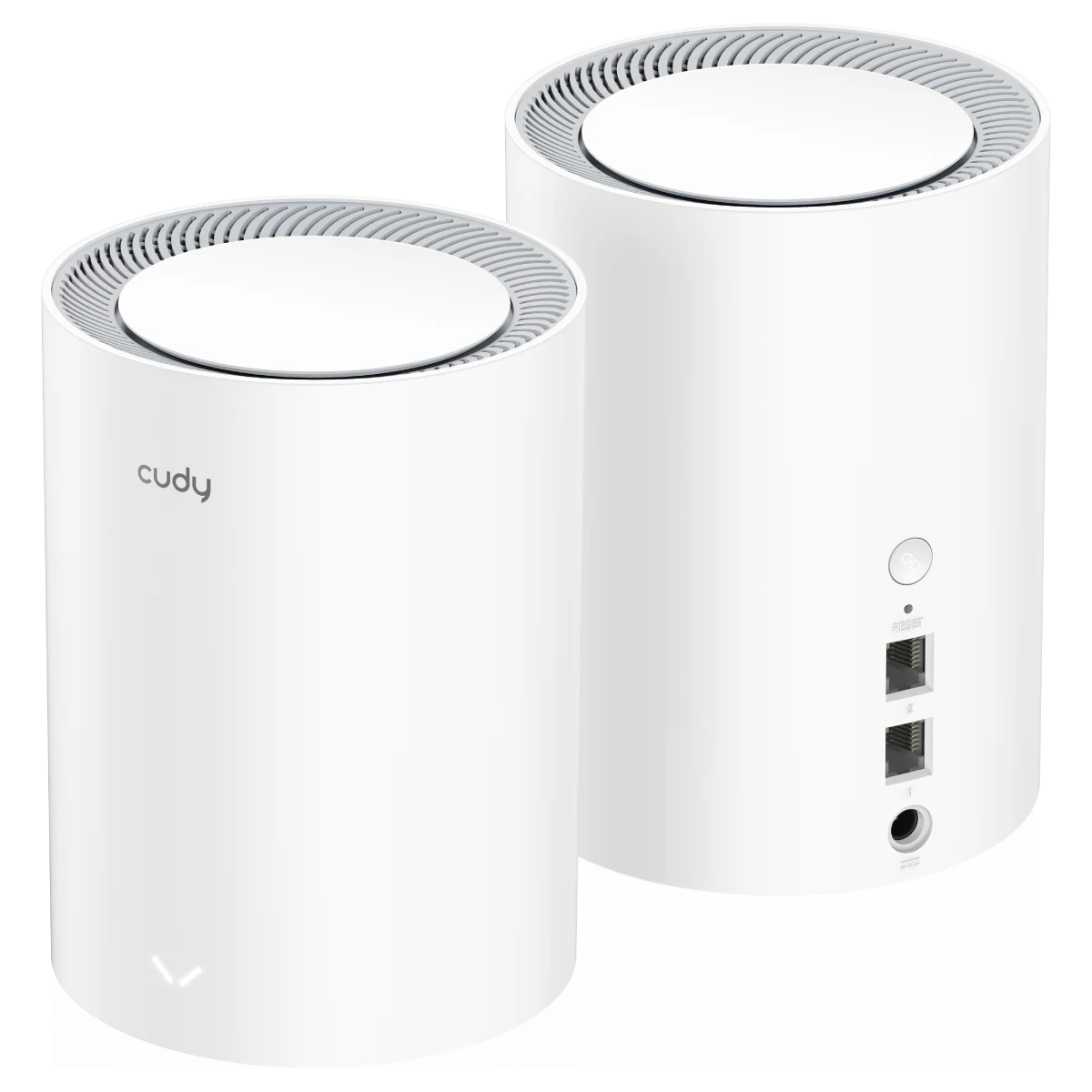

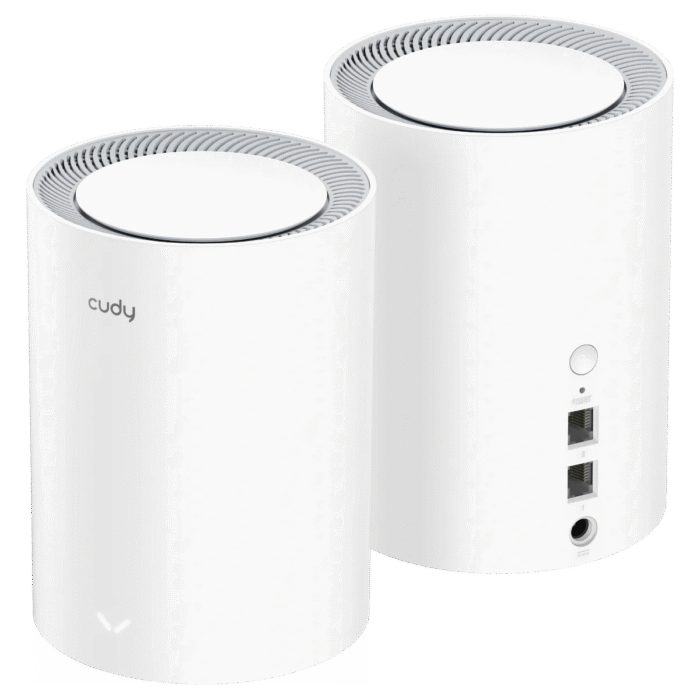

Cudy AX3000 Wi-Fi 6 Mesh Kit 2 Pack – White
R1,260 Incl VAT
Pay R1,222 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.
- 1.3 GHz Dual-Core CPU
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi 1
- 200 Connected Devices 2
- Fast Roaming
- Cudy Mesh, VPN Server and Client
- Multi-Band Simultaneous Backhaul
- Cudy App, Cloud Control
No-Buffer 4K Streaming. Responsive FPS Gaming.
Families, Friends, IoT, All Onboard.
Easy to Use, Versatile Functions
Control Online Time & Content
Secure Personal Network
VPN Server and Client
Know Your Network
Specifications
| Model Version | M3000 2.0 | |
|---|---|---|
| CPU | Chipset | MT7981 |
| CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 | |
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 5× Internal | |
| 5 GHz Antenna Gain Max | 5.1dBi | |
| 2.4 GHz Antenna Gain Max | 4.2dBi | |
| FEM or PA/LNA |
| |
| Beamforming | True | |
| Range Performance | Max: 200 m (656 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) | |
| Multi-Pack Indoor Coverage | 2 Pack: 360 m² (3900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room. | |
| Interfaces | 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 1 | |
| Ethernet Notes | The 2.5G port is WAN port, the Gigabit port is LAN port | |
| LED |
| |
| Physical Buttons |
| |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation | Desktop |
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches | |
| Product Weight | 360 g (12.7 oz.) | |
| Package Content |
| |
| Ordering Information | Retail Package Weight |
|
| Retail Package Dimension |
| |
| Units per Carton |
| |
| Carton Dimension |
| |
| Carton Gross Weight |
| |
| Carton Net Weight |
| |
| Model Version | M3000 2.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency |
| |
| Max Capacity | 512 | |
| Recommended Client Upper Limit | 200 | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | True | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | true | |
| WAN Mode |
| |
| Internet Failover Sequence |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| Wake on LAN | True | |
| Online Detection | True | |
| Management | All Devices Management |
|
| Per-Devices Management |
| |
| Content Management |
| |
| System | LED Control | ture |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel |
|
| Charts |
| |
| Weight | 1.329 kg |
|---|---|
| Brand | Cudy |
