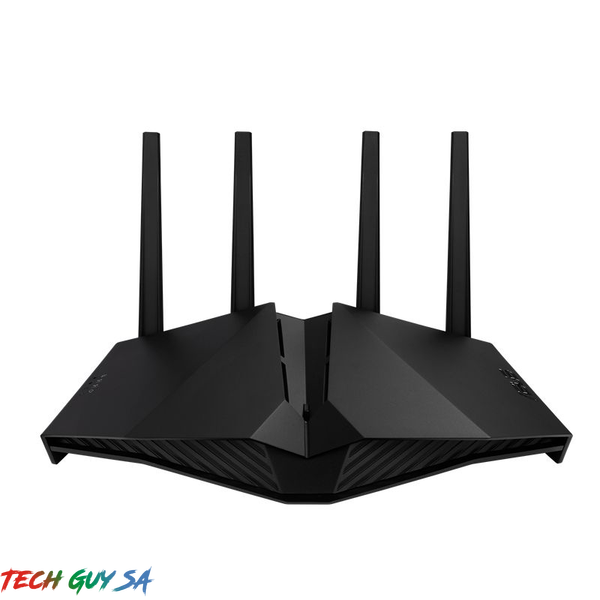

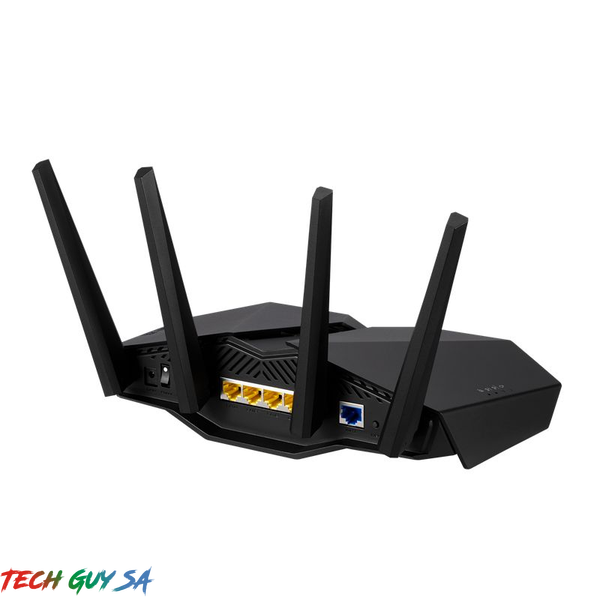

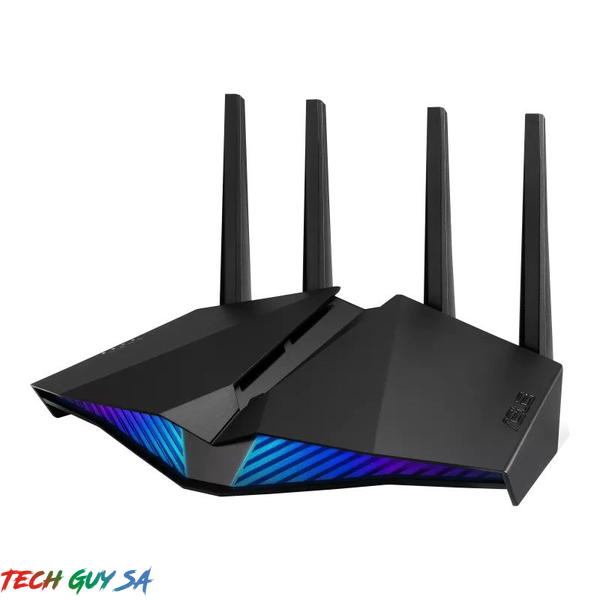

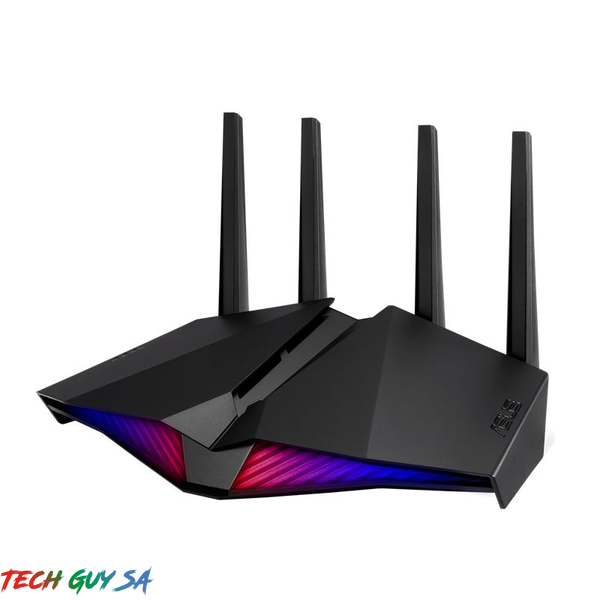

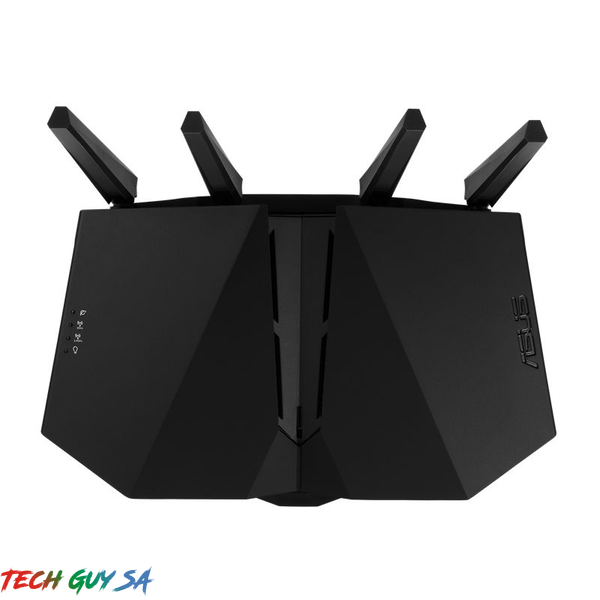

AX5400 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, ASUS AURA RGB, Lifetime Free Internet Security, Mesh WiFi support, Gear Accelerator, Gaming Port, Adaptive QoS, Port Forwarding
- New-generation WiFi 6 – Enjoy ultrafast speeds up to 5400 Mbps with the latest WiFi 6 (802.11ax) and 160MHz channels
- Mobile Game Mode – Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
- Choose your lighting vibe – Feature ASUS Aura RGB lighting effects that you can choose from a variety of lighting effects and customize lighting to align with specific modes.
- ASUS AiMesh support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
- Commercial-grade home network security – Lifetime free ASUS AiProtection Pro, powered by Trend Micro™, with WPA3 and advanced Parental Controls to protect your home
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| DC-in jack | Y |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Y |
| Memory card slot(s) | N |
Network
| Ethernet LAN | Y |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet LAN interface type | Gigabit Ethernet |
| VPN Passthrough | Y |
| Port forwarding | Y |
| Dynamic DNS (DDNS) | Y |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ad |
| Port triggering | Y |
| VPN server | PPTP Server, OpenVPN Server, IPSec server |
| VPN support | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through IPSec server PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
Design
| Product colour | Black |
|---|---|
| Product type | Tabletop router |
| On/off switch | Y |
| Indication light | Y |
| LED indicators | Power,WAN,WLAN |
Operational conditions
| Operating temperature (T-T) | 0 – 40 |
|---|---|
| Operating relative humidity (H-H) | 50 – 90 |
| Storage relative humidity (H-H) | 20 – 90 |
| Storage temperature (T-T) | 0 – 70 |
Weight & dimensions
| Height | 165 |
|---|---|
| Weight | 740 |
| Width | 275.5 |
| Depth | 184.4 |
Power
| AC input voltage | 110 – 240 |
|---|---|
| AC input frequency | 50/60 |
| Power source type | AC |
| Output voltage | 19 |
| Output current | 1.75 |
Features
| Built-in processor | Y |
|---|---|
| Firmware upgradeable | Y |
| Processor frequency | 1500 |
| Internal memory | 512 |
| Flash memory | 256 |
| Processor cores | 3 |
System requirements
| Windows operating systems supported | Windows 10,Windows 7,Windows 8 |
|---|---|
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion |
Packaging data
| Cables included | LAN (RJ-45) |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Warranty card | Y |
Security
| Firewall | Y |
|---|---|
| Guest access | Y |
| DMZ support | Y |
| Filtering | Y |
| URL filtering | Y |
| Security algorithms | WPA-Enterprise,WPA2-PSK,WPA3-PSK,WPS |
| Firewall security | SPI, DoS |
| Parental control | Y |
Protocols
| Universal Plug and Play (UPnP) | Y |
|---|
Management features
| Quality of Service (QoS) support | Y |
|---|---|
| Reset button | Y |
| WPS push button | Y |
| Web-based management | Y |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| Modulation | 1024-QAM |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 |
Antenna
| Antenna type | External |
|---|---|
| Antennas quantity | 4 |
Mobile network
| 3G | N |
|---|---|
| 4G | N |
WAN connection
| Ethernet WAN | Y |
|---|---|
| SIM card slot | N |
| DSL WAN | N |
| WAN connection type | RJ-45 |
