Sold out

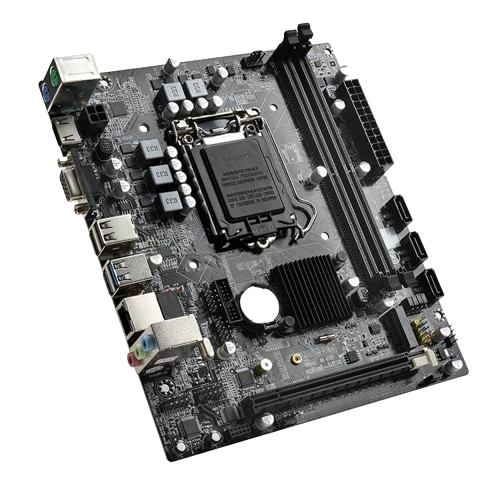

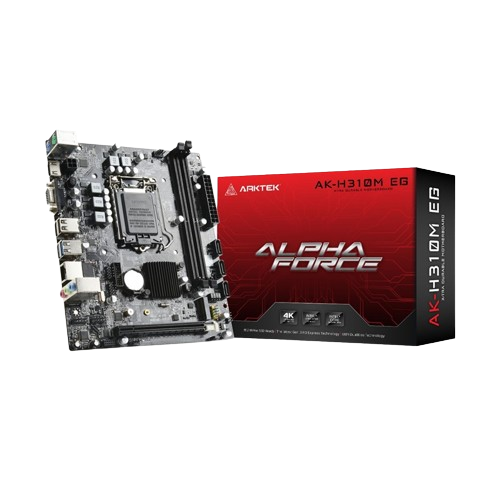

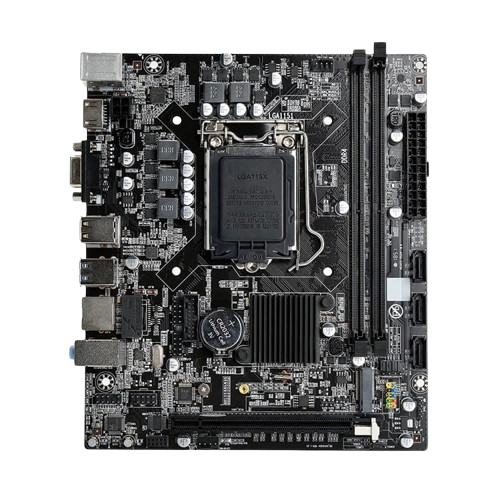

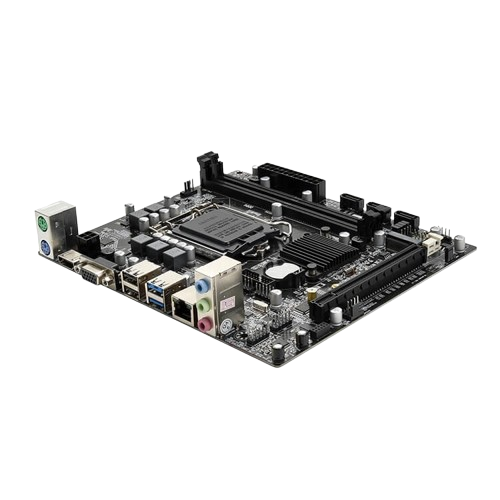

Arktek AK-H310M EG LGA 1151 Motherboard
R1,400 Incl VAT
Pay R1,358 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description
Intel H310
+ Model: AK-H310M EG
+ Socket: LGA1151
+ Chipset: Intel H310
+ Memory Support: Dual Channel DDR4
Overview
- CPU Support: Intel® socket 1151, support Intel i3/i5/i7series CPU
- Chipset: Intel H310 Chipset
- On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
- Memory: Dual Channel DDR4 2133/2400/2666MHz (Max. Supports up to 16GB Memory)
- DIMM: 2 x Memory Slots
- LAN: Onboard Realtek® RTL8111e 1000LAN
- Audio: Chip integrated by Realtek 662 on board, Supports 6-channel audio-out
- SATA: 3 x SATA 3.0 port, 1 x M.2
- Internal I/O:
2 x USB 2.0 header supports additional 4 USB 2.0 ports
1 x USB 3.0 header supports additional 2 USB 3.0 ports
1 x Front Panel Audio header - Expansion Slots: 1 x PCI Express x16 slot
- Form Factor: Micro-ATX (19.7 x 17 cm)
- OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
- Mounting: 6 mounting holes
Spec
| Intel H310 | ||
|---|---|---|
| CPU Support | Intel® socket 1151,support Intel i3/i5/i7series CPU | |
| Chipset | Intel H310 Chipset | |
| On-Board Graphics | Integrated Graphics Processor-Intel® HD Graphics support | |
| Memory | Dual Channel DDR4 2133/2400/2666/3200MHz (Max. Supports up to 16GB Memory) | |
| DIMM | 2 x Memory Slots | |
| LAN | On board Realtek® RTL8111e 1000Mbps adaptive network card interface | |
| Audio | Chip integrated by Realtek 662 on board, Supports 6-channel audio-out | |
| SATA | 3 x SATA 3.0 port, 1 x M.2 | |
| Real I/O | 1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x VGA port 1 x HDMI port 2 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack | |
| Internal I/O | 2 x USB 2.0 header supports additional 4 USB 2.0 ports 1 x USB 3.0 header supports additional 2 USB 3.0 ports 1 x Front Panel Audio header | |
| Expansion Slots | 1 x PCI Express x16 slot | |
| Form Factor | Micro-ATX (19.7 x 17 cm) | |
| OS Support | Support Windows 7 / 8 / 8.1 / 10(x64) | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |
| Remark | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. |
Additional information
| Brand |
Arktek |
|---|---|
| Socket |
LGA 1151 |
| CPU Support |
Intel 8ᵗʰ Generation ,Intel 9ᵗʰ Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
Intel H310 |
| Form Factor |
mATX |
| Memory Slots Available |
2 Slots |
| Memory Type |
Desktop DDR4 |
| On-Board WiFi |
No |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
